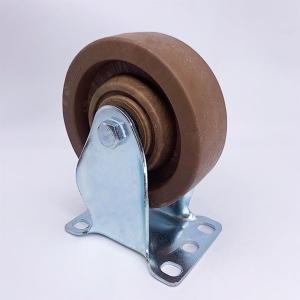

Phenolic Heat Resistant Rigid Castor Wheels 100mm

Name: Phenolic Heat Resistant Rigid Castor Wheels 100mm
Brand: Ecastor
Price: 1 USD

Quality Phenolic Heat Resistant Rigid Castor Wheels 100mm wholesale

Brand Name : Ecastor

Model Number : 1220-100

Certification : ISO9001

Place of Origin : Suzhou, China (Mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 500000 Piece/Pieces per Month

Packaging Details : Inner Bag, Carton, Pallet

Product Name : Phenolic Heat Resistant Rigid Castor Wheels

Load Capacity : 110 kg

Wheel Diameter : 100 mm

Tread Width : 32 mm

Plate Size : 95x65mm

Hole Spacing : 75x45mm

Mounting Height : 130 mm

Tread Material : Phenolic

Mounting Type : Rigid Plate

Max Temperature : 300 ℃

Contact Now

Phenolic Heat Resistant Rigid Castor Wheels 100mm

1. Description:

Wheel Material: Phenolic resin mixed with macerated canvas made for high temperature applications -best suited for dry heat (Powder coating, bakeries, etc). Exceptional resistance to oil, grease, and most acids, chemicals and cleaning solutions. Not recommended for frequent wash-down or wet environments. Hard tread rolls exceptionally easy; not recommended for rough surfaces.

Lubrication-For casters designed to work at higher temperatures, manufacturers must use grease and other lubricants rated for high temperatures. If necessary, they also add seals to prevent lubricant from flowing out of the casters.

Rigid casters are casters that remain in one position. They will not spin like swivel casters. Rigid casters provide you with great stability, but there is no moving advantage that swivel casters provide you. For the best results, most customers will combine swivel casters and rigid casters to provide them with the best combination of stability and mobility.

2. Specification

Product Name	4 Inch Phenolic Wheel High Temp Resistant Rigid Plate Caster
Wheel Diameter (mm)	100
Wheel Width (mm)	32
Load Capacity(kg)	110
Height (mm)	130
Plate Size (mm)	95x65
Hole Spacing (mm)	75x45
Hole Size (mm)	8.5
Tread Material	Phenolic
Max Temperature	300 Degrees Celsius
Mounting Type	Rigid Plate
Code	1220-100
Brake	No

Phenolic Heat Resistant Rigid Castor Wheels 100mm

3, Other Size Products as Bellow:
